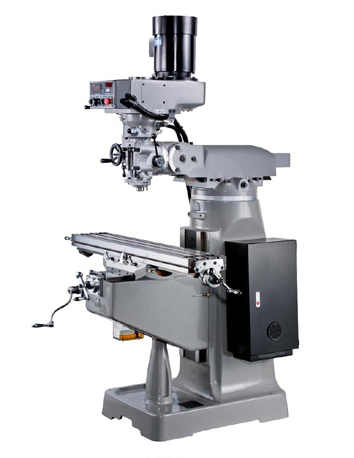

MODEL: 3VSF
3VSF SPECIFICATIONS
|
Specifications |
3VSF |
|
Table size |
42" x 9" |
|
Table travel |
711 mm |
|
Saddle travel |
305 mm |
|
Knee travel |
368 mm |
|
Quill diameter |
85.725 mm |
|
Quill travel |
127 mm |
|
Ram travel |
368 mm |
|
Spindle motor |
3 HP (variable) |
|
Spindle taper |
R8 (Opt.NT-30) |
|
Quill power feedrate |
0.0381, 0.0762, 0.152 mm / Rev. |
|
Spindle speeds RPM |
60 - 650 - 4500 (Variable) |
|
Weight |
1150 kgs |
All specifications and designs are subject to change without notice.
|
Optional accessories |
|
|
|
Hardened- grounded table |
Digital read-out |
Up / down feed system |
|
Front / back way cover |
Power-feed system |
Electrical lubrication system |
|
Grounded & hardened 3 axis slide way |
Electrical cabinet |
Work light |
|
Draw bar |
Coolant system |
Leveling pad |
|
tool box & tool set |
coolant tray |
|
