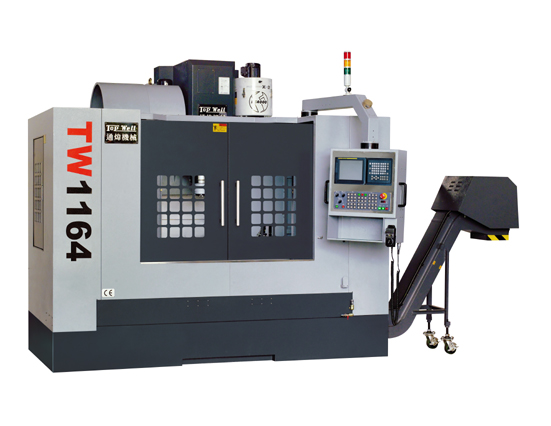

TW-1164 High Speed Vertical Machining Centers
TW-1164 SPECIFICATION
| MODEL | TW-1164 |
| Travel | |
| X axis (Longitudinal) | 1100 (43") |
| Y axis (Cross) | 640 (25") |
| Z axis (Vertical) | 620 (24") |
| Spindle nose to table surface | 140-760 (5"-29") |
| Table | |
| Table dimension | 1,250 x 620 (49" x 24") |
| T-slots wide x; no. x pitch) | 18 (0.7") x 5 x 125 (4.92") |
| Table load apacity | 800kgs (1762 lbs) |
| Headstock | |
| Spindle nose (BT/CAT/ISO) | 40 Taper |
| Spindle RPM (#40 Taper) | 8,000 / 10,000 (opt.) / 12,000 (opt.) |
| Feedrate | |
| Rapid traverse for X, Y, Z axis | 32 x 32 x 32 m./.min |
| Cutting feed for X, Y, Z axis | 1-10,000 mm./.min (0.04-400 ipm) |
| Motors | |
| Main motor #40 (cont./30min) | 11Kw / 15 Kw |
| AC servo motor for each axis | X, Y : 3 Kw - 12 NM / Z : 4 Kw - 22 NM |
| Coolant system | 580 W |
| Lubrication system | 25 W |
| Spindle chiller system | 850 W fpr spindle over 8,000 RPM |
| Automatic tool changer | |
| Magazine for armless type | 16 / 20 tools |
| Magazine for arm type | 24 / 32 / 40 tools |
| Max. tool diameter | #40 : 70 / 127 (3" /5") |
| Max. tool length | #40:300 (11.8") |
| Max. tool weight | #40: 7 kgs (15lbs) |
| Accuraccy | |
| Positioning | ±0.005 mm / ±0.0002" |
| Repeatability | ±0.005 mm / ±0.0002" |
| General information | |
| Air pressure | 5Kg / cm² over |
| Machine weight | 5,860 kgs (12,900lbs) |
| Floor space (L x W x H) | 3,250 x 3,500 x 2,840 (128" x 137" x 111") |
| CNC controller | Fanuc Oi/31i, Meldas M70, Heidenhiem |
All specifications and designs are subject to change without notice.
|
Standard equipment |
|
Optional accessories |
|
Full enclosure guard |
Automatic power off (M30) |
10,000 / 12,000rpm spindle with chiller |
|
Turning operation panel |
Automatic lubrication system |
Coolant thru spindle preparation |
|
Rigid tapping |
Spindle air purge system |
Chip flushing system with high |
|
MPG (hand wheel) |
Spindle air blow system | pressure pump |
|
Halogen work light |
Coolant system with coolant tank |
Chain type chip conveyor with bucket |
|
Leveling bolts and blocks |
Heat exchanger of electrical cabinet |
4th axis interface |
|
Beacon light |
Tool box for machine set up |
Transformer |
