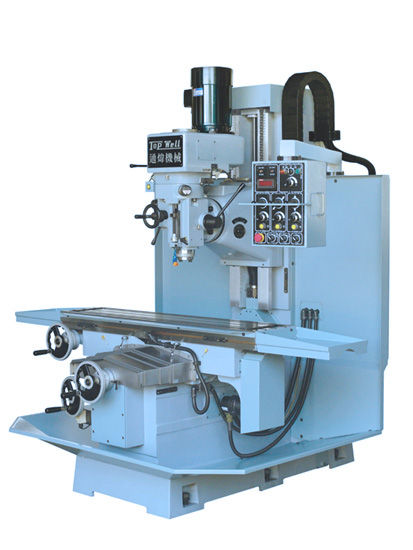

Model: TW-40QIF
TW-40QIF SPECIFICATIONS
| Specifications |
TW-40QIF |
| Working table surface |
13" x 59" (330 x 1500mm) |
| T-slot (size / N0. /distance) |
5/8" x 3" x 3.15" (16 x 3 x 80mm) |
| Longitudinal travel (X) |
41" (1050mm) |
| Vertical travel (Z) |
24" (600mm) |
| Cross travel (Y) |
22" (550mm) |
| Spindle taper | ISO #40 |
| Spindle motor |
5HP (3.7KW) |
| Spindle speed RPM |
Low Gear (80-500) / High Gear (500-4200) |
| Quill feeds (3 steps) |
0.0017/0.0032/0.0054Rev. (0.004/0.083/0.138mm Rev.) |
| Quill travel |
5.5" (140mm) |
| Spindle center to column front |
22.6" (537mm) |
| Spindle nose to table top |
3.74" ~ 27.16" (90 ~690mm |
| Packing Size (L / W / H) |
79" x 76" x 95" (2007 x 1930 x 2413mm) |
| Machine weight |
6500lbs (2750kgs) |
All specifications and designs are subject to change without notice.
| Special accessories | ||
|
Inverter spindle motor |
Chip pan |
Power drawbar |
|
Precision ball screws for 3 axis |
Automatic lubricate system |
Digital readout system |
|
DC servo driving system for 3 axis |
Metal telescoping cover for axis |
|
|
Quartz work light |
Big tools cabinet |
|
|
Coolant system |
Tools 1 set |
|
